Our Diverter Valves are designed to handle all kinds of dry powders and granular materials in Food, Dairy, Pharmaceutical, Chemical, Petro-Chemical & Mineral industries around the world. We supply solutions for requirements regarding sanitary applications.
Our product line includes USDA approved models for sanitary use in Food and Pharmaceutical industries. The Diverter Valves are available in sizes from 100mm to 500mm, covering a capacity range of the rotor from 0.8-230 litre/rev at 100% filling.
It is used with DT type RV. It's a transition piece
connecting the RV outlet to the conveying
line- It has a flange connection (available in DIN / ANSI / JIS) on
the top and pipe connection
(available in different sizes) on the bottom
- Available in mild steel & stainless steel
construction

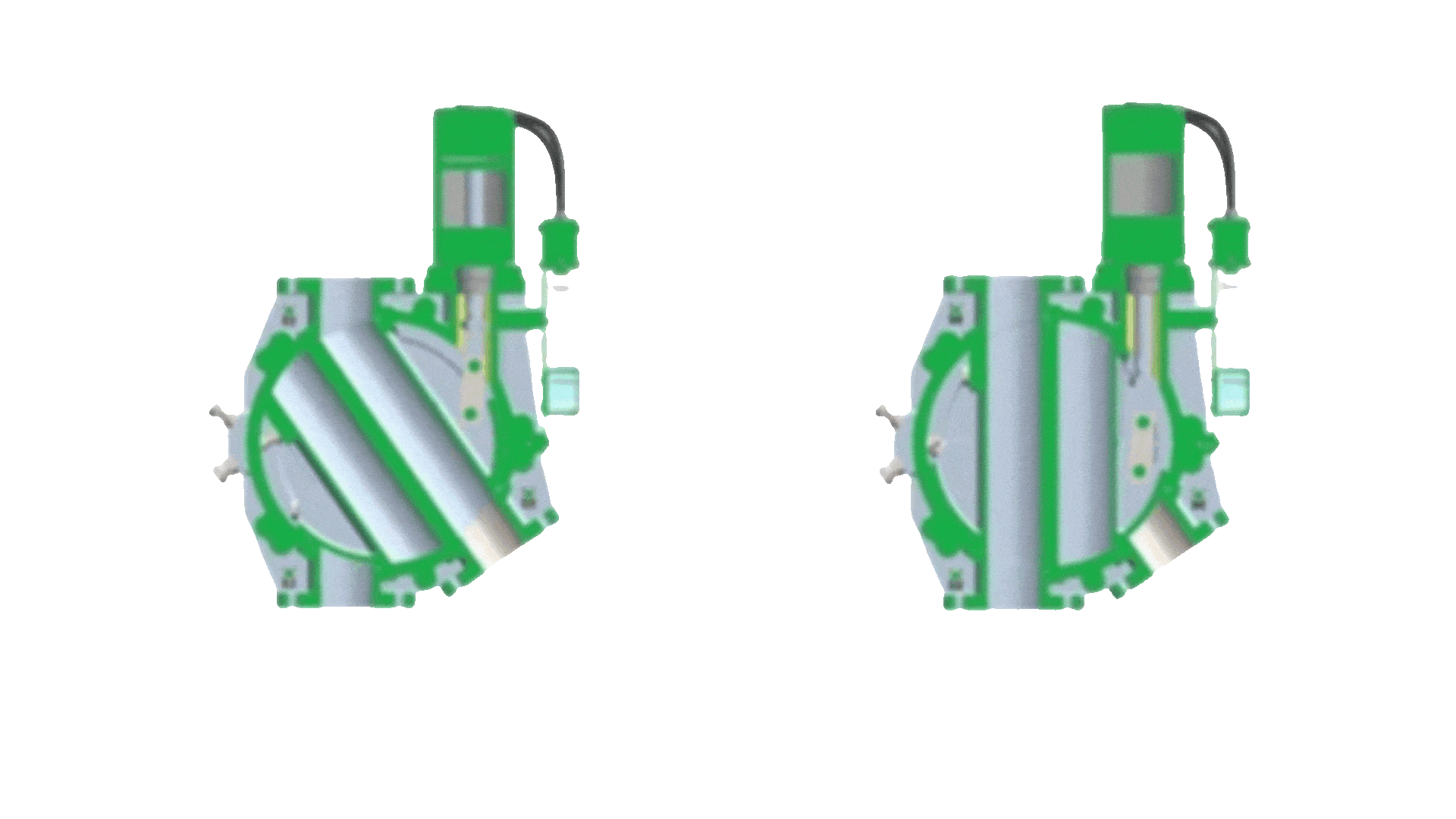

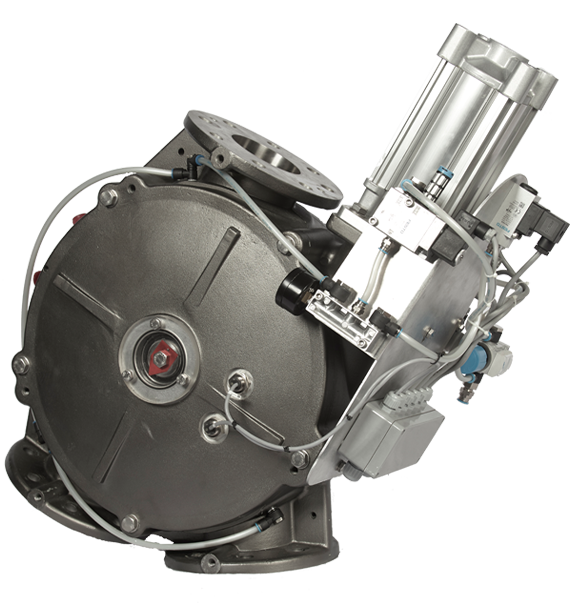

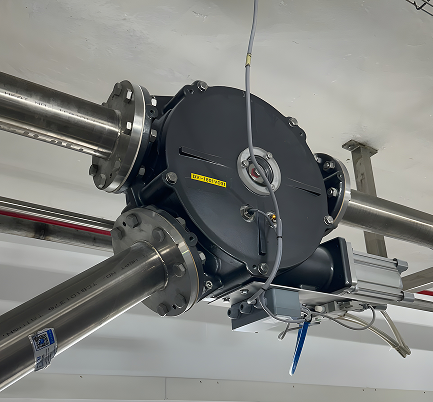

Drum Type Diverters (DTD) are specifically designed to divert or converge dry bulk materials—such as powders, pellets, kibbles, and granules—with minimal product degradation in pneumatic conveying systems.
They are suitable for both pressure and vacuum conveying
applications.
Sealing options include silicone and polyurethane, selected based
on
the application requirements :
- Static Silicone Seals are suitable for pressure conveying up to 2 bar(g)
- Dynamic Silicone Seals are ideal for higher-pressure applications, supporting up to 6 bar(g)
DTD units are available in sizes ranging from 50 mm to 200 mm.
- Body, end cover and plug in Gravity Die Cast Aluminum.
Product contact surface in SS
- Used in both converging and diverging application
- SDTD static silicone seals used in pressure conveying up to
2
bar g
- DTD inflatable silicone seals used in pressure conveying up
to 6 bar g
- DOptional - polyurethane seal available on request
- Vacuum conveying up to -0.5 bar g
- Maximum conveying product temperature 80 deg c
- Sizes - 50, 65, 80, 100, 125 & 150mm
- Actuation - Cylinder operated

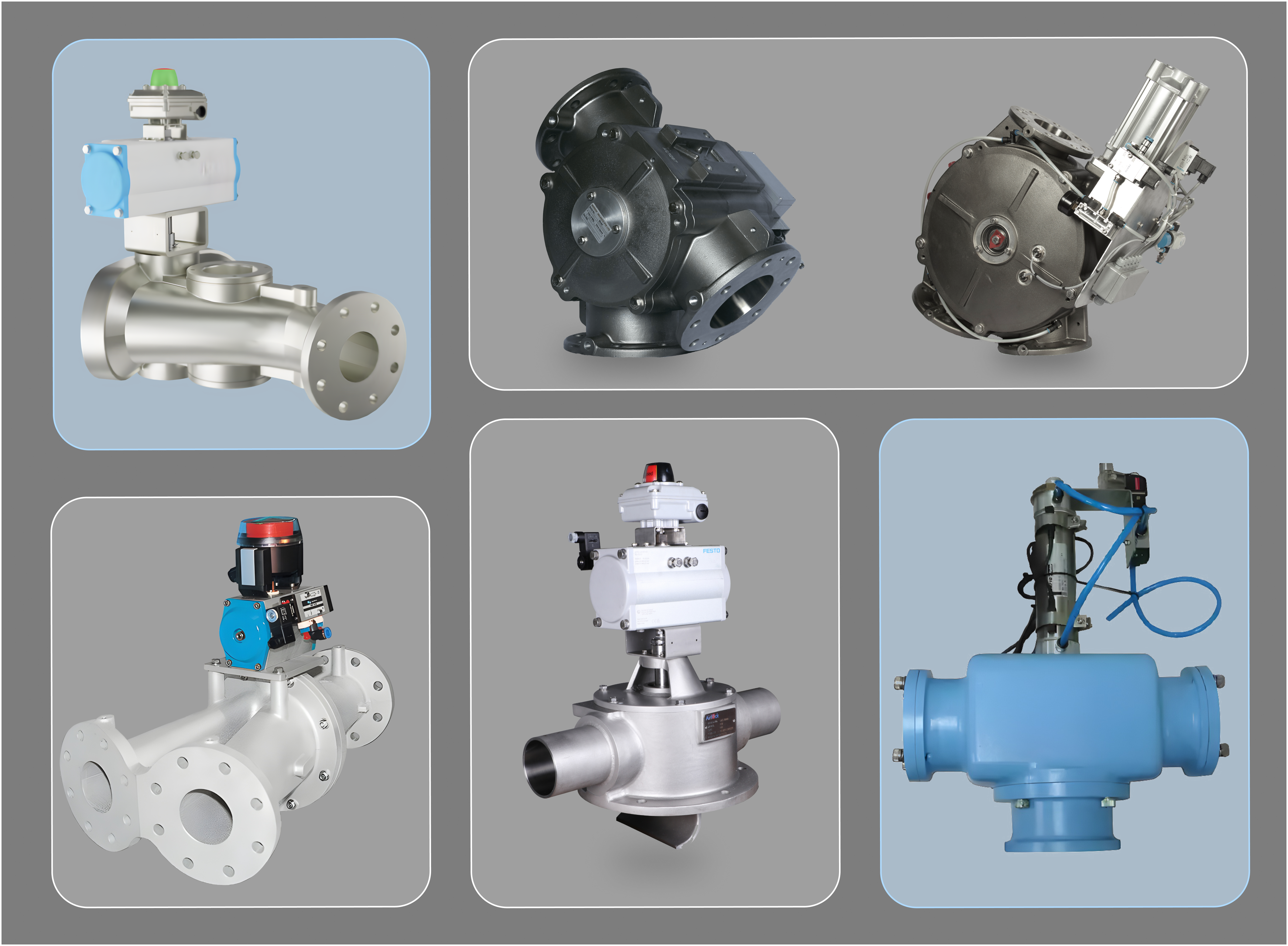

Diverter Valves direct material from one source to multiple destinations and make sure that conveying air and product are forwarded with low resistance.
.gif)
Diverter Valves direct material from one source to multiple destinations and make sure that conveying air and product are forwarded with low resistance.
- Economical
- Quality
- We can extend 18 months warranty (if needed to win the
order)
Others are offering only 12 months
- If any problem at site, our service engineer will visit
with
in couple of days
- ATEX rated
- ISO certified
- Delivery is very quicker
- Spare parts readily available
- Castings from Gravity die process (others are getting from
sand castings)
- In DTD , Polyurethane seal can be fitted in the same groove
.
No need for any modification

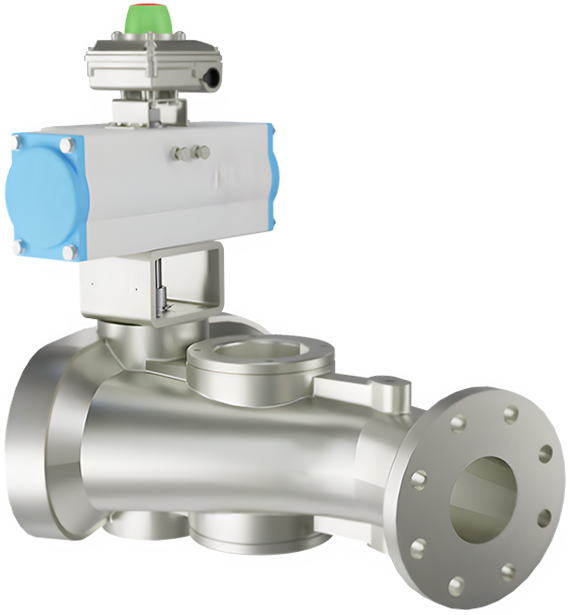

Ball Type Diverter (BDV) are specifically designed to divert or converge dry bulk materials—such as powders, pellets, kibbles, and granules in pneumatic conveying systems.
They are suitable for both pressure conveying up to 6 bar g and vacuum conveying up to -0.5 bar g applications.
Sealing options include polyurethane, viton and silicone - selected based on the application requirements :
BDV units are available in sizes ranging from 65 mm to 250 mm.

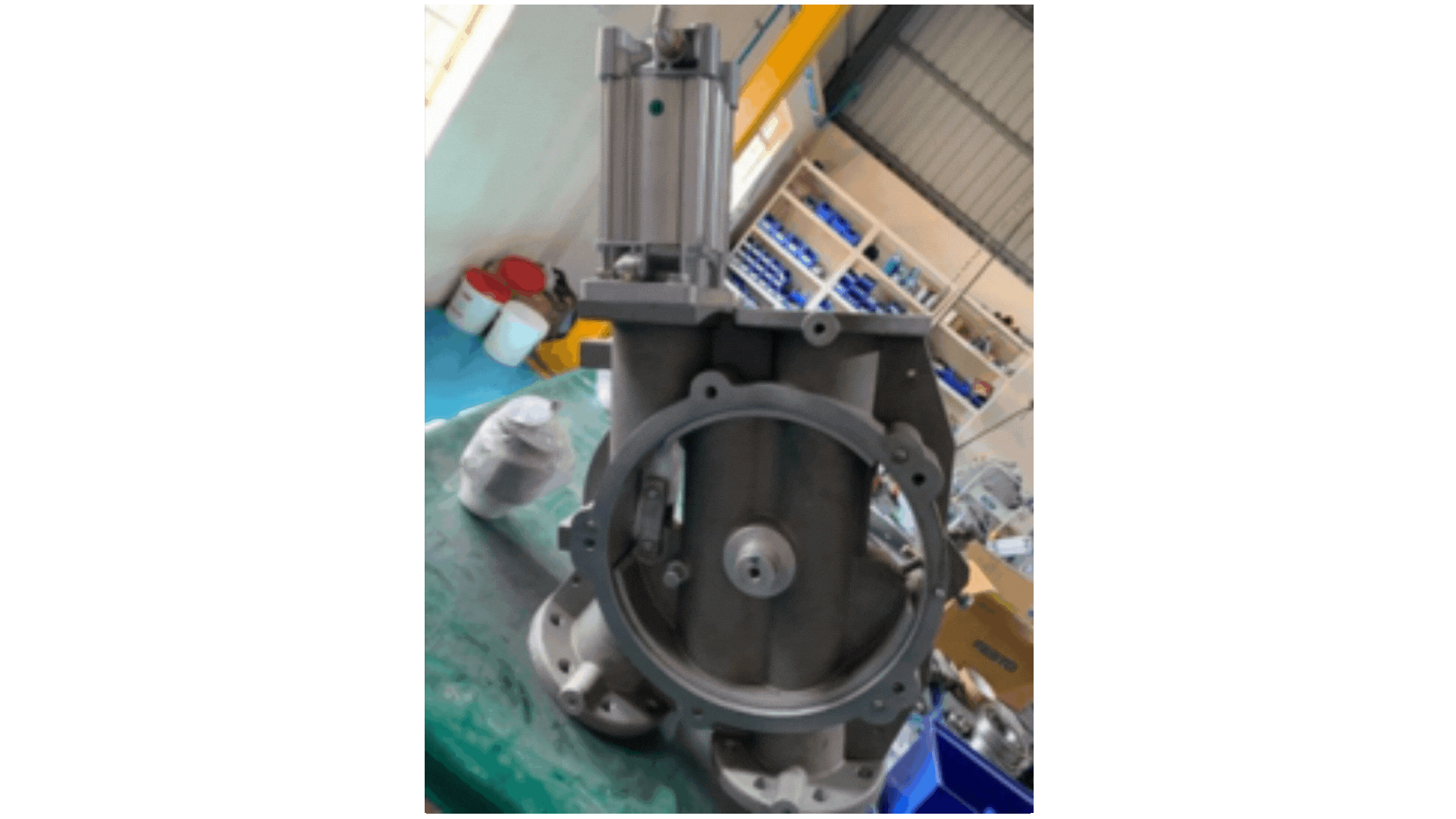

Single Drum Type Diverters (SDTD) are specifically designed to divert dry bulk materials such as powders, pellets, kibbles, and granules – in pneumatic conveying systems.
SDTD-C is used for both diverging and converging applications.
They are suitable for both pressure and vacuum conveying applications.
Sealing options include static silicone and dynamic silicone, selected based on the application requirements :
- Static Silicone Seals are suitable for pressure conveying up to 1.5 bar (g)
- Dynamic Silicone Seals are ideal for higher-pressure applications, supporting up to 6 bar (g)
SDTD units are available in sizes ranging from 150 mm to 300 mm.
- Body, end cover and plug in SS
- Used in diverging & converging application
- SDTD static silicone seals used in pressure conveying up to
2
bar g
- Vacuum conveying up to -0.5 bar g
- Maximum conveying product temperature 80 deg c
- Sizes - 150 ,200 & 250mm
- Actuation - Actuator
( Y- Valve )
- Body available in Cast Iron, Aluminum and Stainless steel
version
- Used in diverging application
- Y- type diverter have flap assembly and seals in
polyurethane
- Maximum working pressure is 250 mbar and vacuum -0.2 bar
- Maximum conveying product temperature 80 deg c
- Sizes - 150 & 200mm
- Actuation - Actuator & Electric drive
Connection :
- Flange Connection
- Pipe Connection

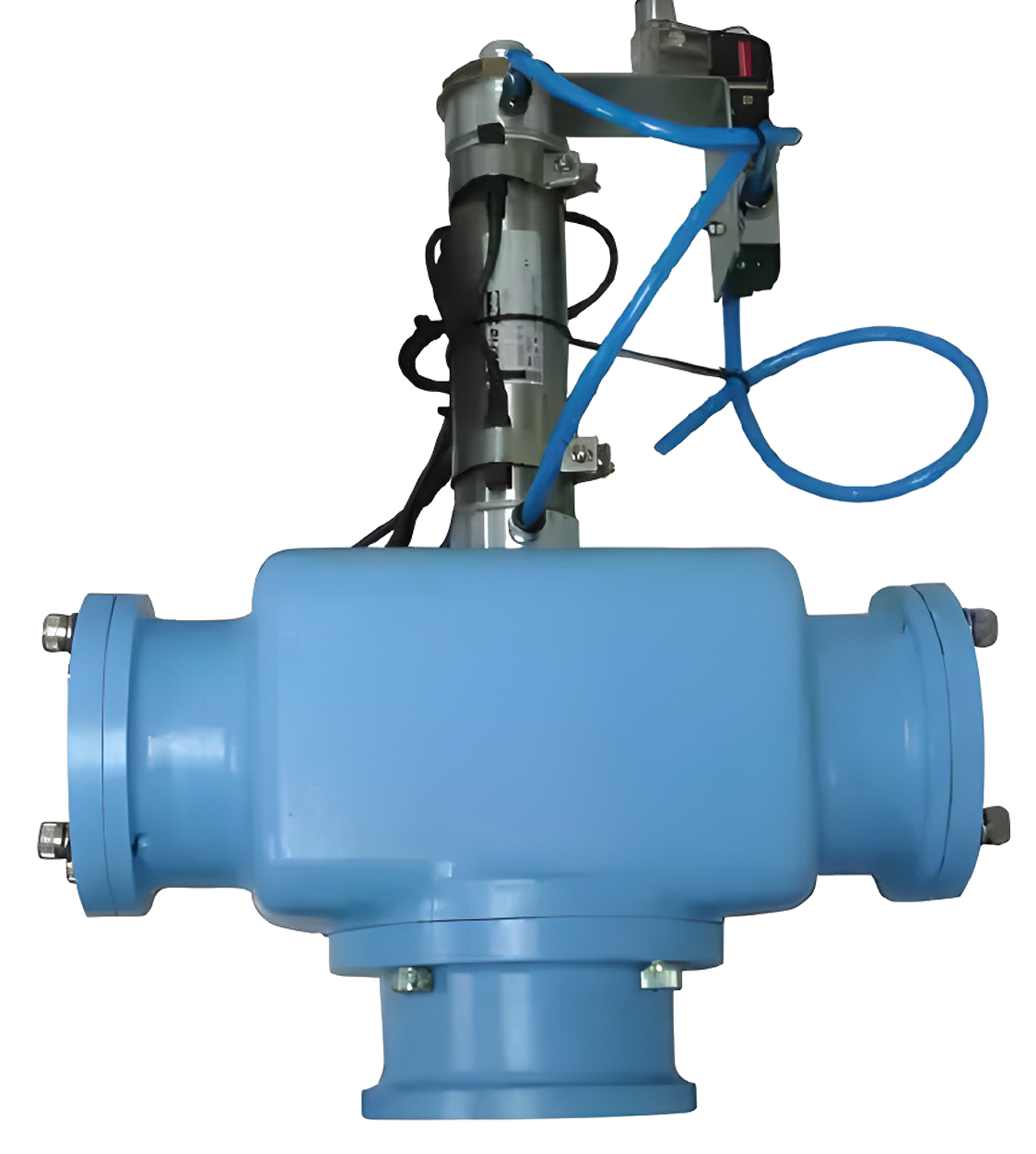

By-Pass Valve (BPV) is also called as “Air Only Diverter” specifically designed to divert the air in pneumatic conveying systems. This is typically used in Lean Phase Pneumatic Conveying Systems for both pressure and vacuum conveying applications.
Construction : Aluminium
Sizes : 50, 75,100 & 150 mm
Plunger : Standardized on SS material with FDA rubber disc
FEATURES
OPTIONS

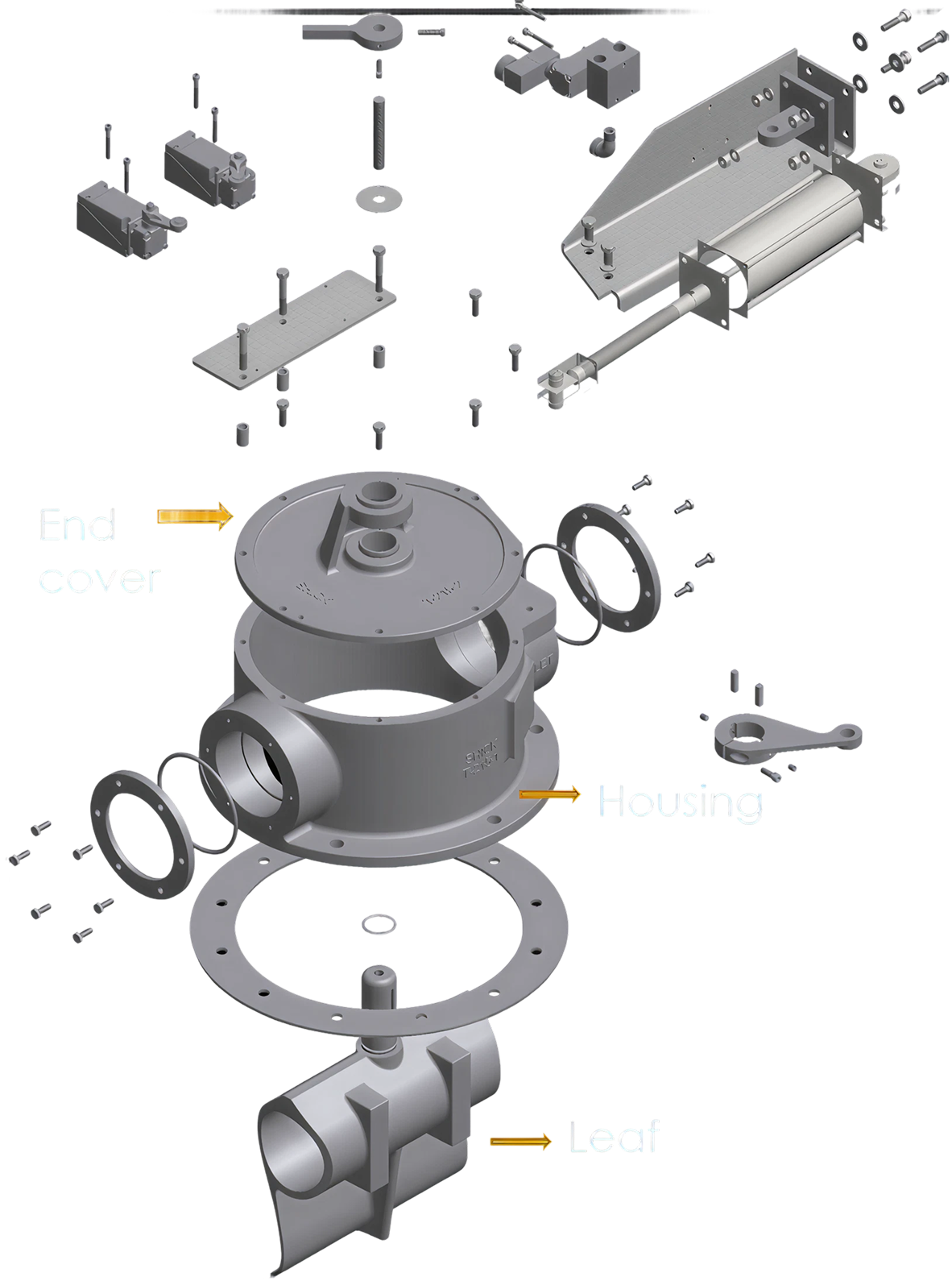

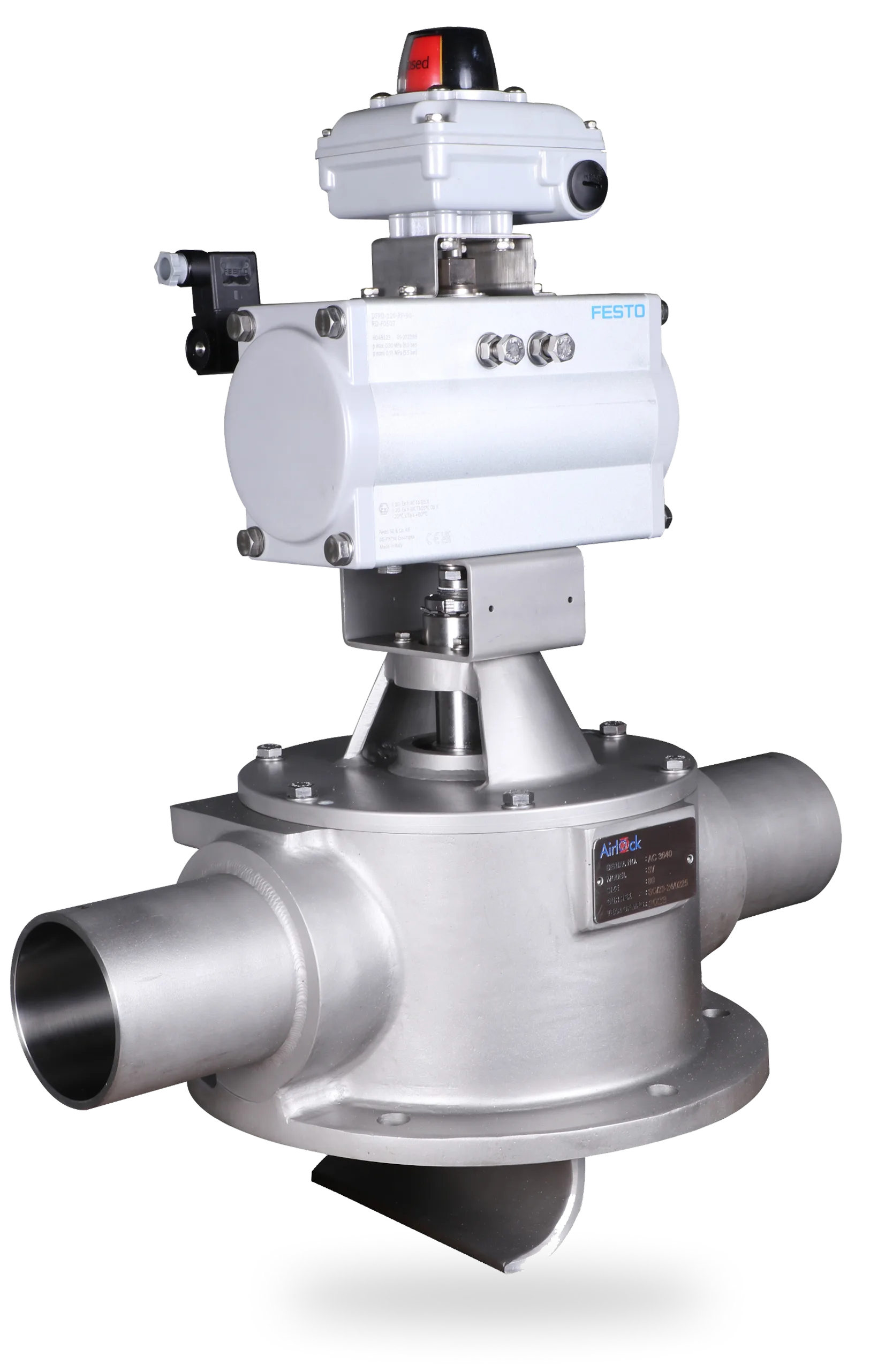

Scale Valve (SV-A also known as a Bottom Diverter or Fill Vent Diverter) is a pneumatically actuated diversion valve designed to divert bulk solids during pneumatic transport. It is designed for applications like dosing, weighing, batching and filling.

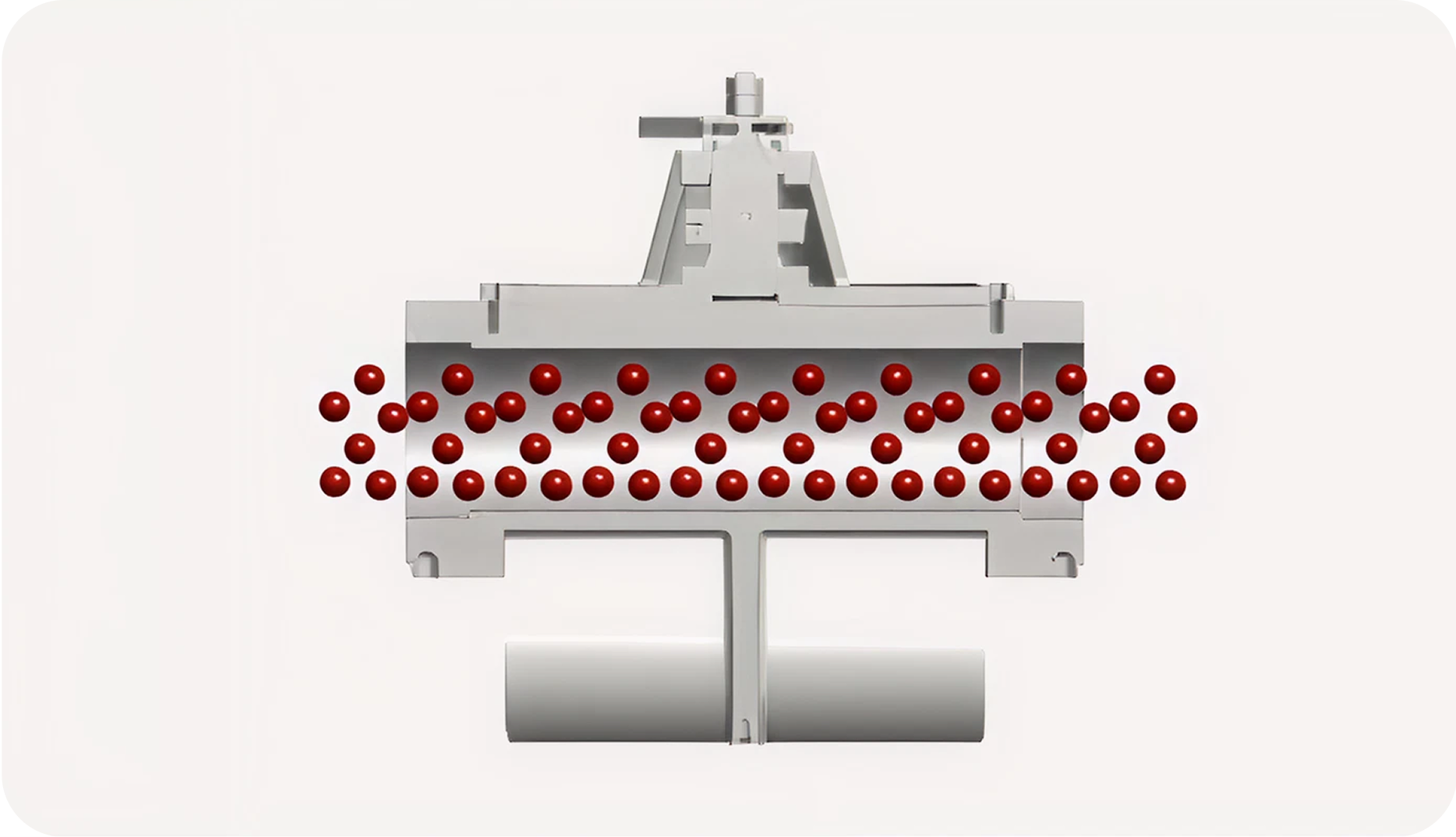

Principle Operations
- Straight-through mode: Inlet and outlet aligned; material flows straight thru.
- Divert mode: the leaf rotates to redirect material into a weigh hopper or scale vessel; conveying air is vented separately.
FEATURES
OPTIONS
