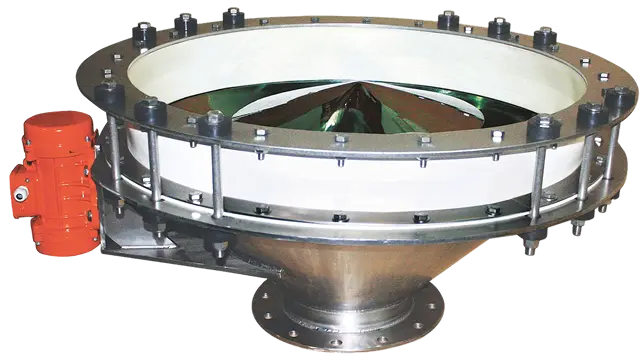

Bin Activator

Bin Activator (also called Bin Discharger) is a cone-shaped device fitted to the outlet of a bin, hopper, or silo. It uses a vibratory motor to impart controlled vibrations, promoting mass flow ensuring all material moves uniformly and preventing blockages like bridging, ratholing, and segregation.

Why Use a Bin Activator

01

Eliminates flow disruptions: Prevents arches and ratholes that stop material flow.

02

Promotes mass-flow behavior: Entire contents flow evenly, ensuring a first-in-first-out discharge.

03

Reduces segregation: Vibration minimizes separation of particle sizes or densities.

04

Eliminates flow disruptions: Prevents arches and ratholes that stop material flow.

1. Sizes from 600 – 2500 mm

2. Flexible Sleeve made of FDA approved White EPDM in Single Piece Mould up to size 1500mm

3. High quality vibrator motors

4. Available in carbon steel and stainless steel construction

WHAT WE
OFFER

5. Very easy to install at site

6. Easy cleaning feature will be available on request

7. Less maintenance

Option :
Demountable Bottom Hopper

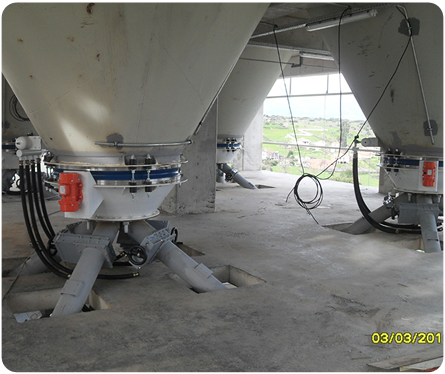

APPLICATIONS

Bin Activators eliminate bridging and ratholing, reduce particle segregation and promote mass flow. They are efficient, convenient and economical and attach to any bin or silo whether new or existing

BA consists of internal cone shaped baffle which is attached to the body rigidly by means of structural member. The unit is suspended by means of hanger bolts from the bottom of the hopper or silo

BA moves horizontally in response to centrifugal forces generated by unbalance weights of an attached vibrator. The cone baffle relieves the weight of the material from the lower section of the bin discharger and acts like a wedge and push the material down to all directions adjacent to the cone surface.

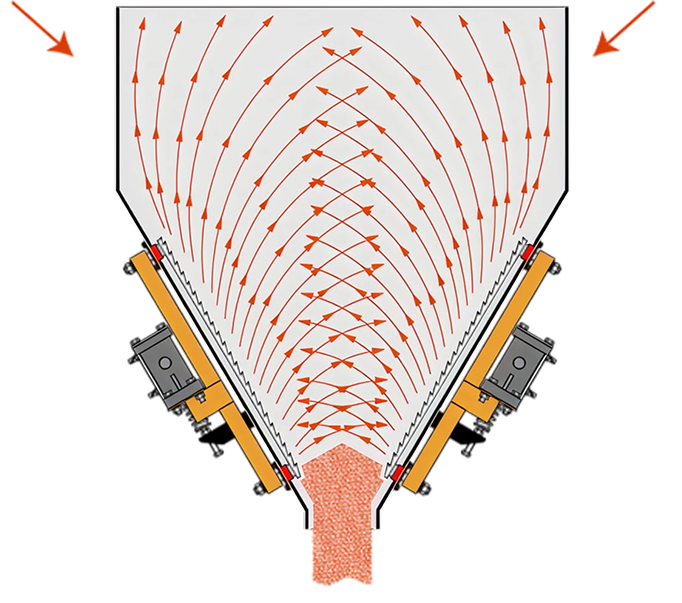

Principle Operations

Bin Activator Dimensions

Model	Dimension in mm
Model	A	B	C	D
BD 600	600	200	400	8
BD 900	900	200	540	12
BD 1250	1250	250	700	12
BD 1500	1500	250	820	12
BD 1800	1800	250	990	12
BD 2100	2100	250	1125	18
BD 2500	2500	300	1300	18
