INTRODUCTION TO DIVERTER VALVES

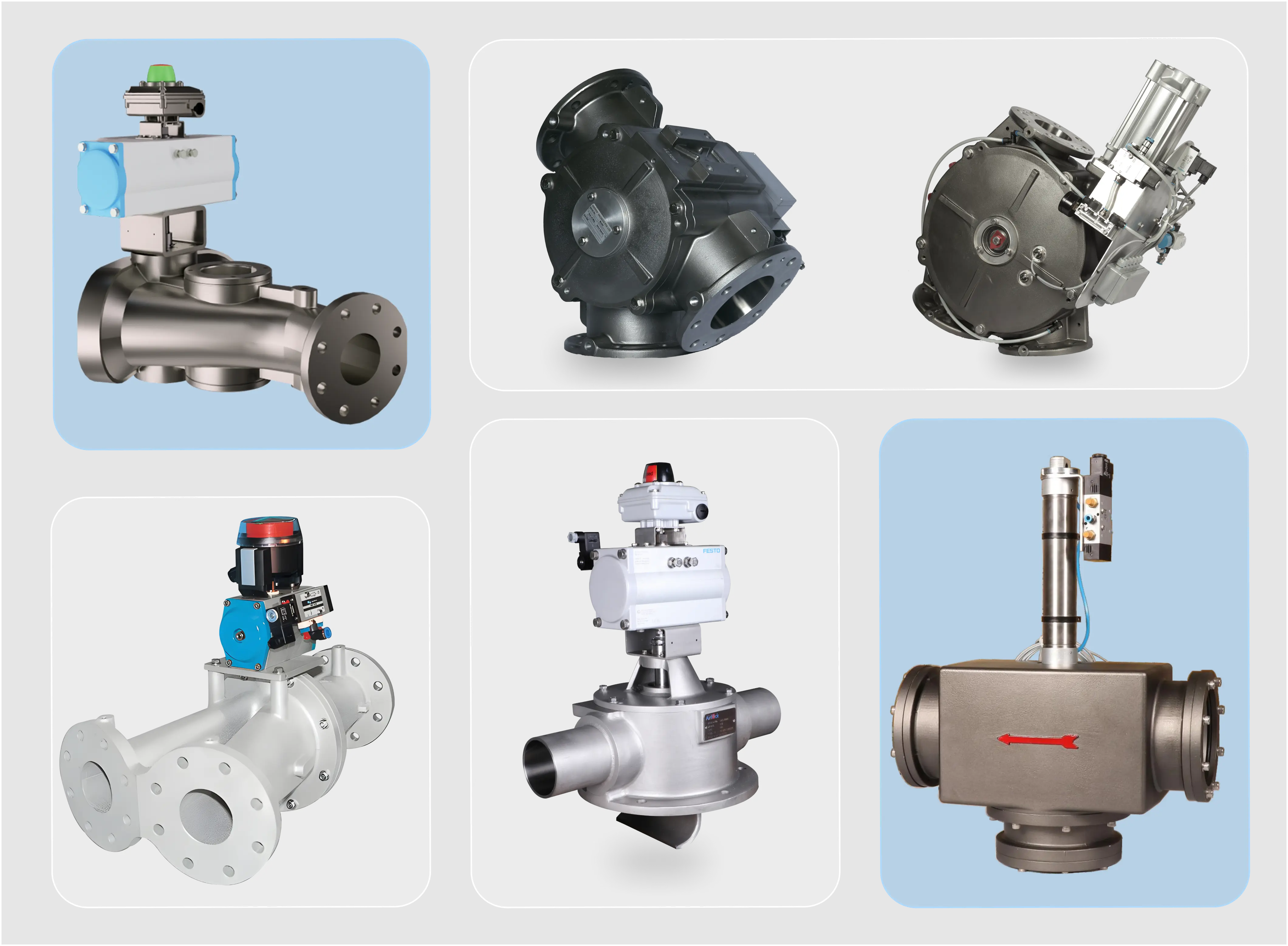

Our Diverter Valves in Bulk Solids Handling Systems, designed to direct the flow of powders, granules or other dry bulk materials from one source to multiple destinations. Our diverters play a vital role in ensuring efficient and controlled material distribution in pneumatic conveying systems and gravity flow lines.

Our valves are used in industries such as food processing, pharmaceuticals, chemicals, plastics and cement, where reliable material routing is essential for their process requirements.

Proper selection of a diverter valve depends on factors such as material characteristics, applications and other requirements. Our diverters robust construction and precise sealing capabilities help reduce downtime and maintenance, making them a vital part of modern bulk solids handling systems .

PRODUCT
PRODUCT
APPLICATION
Lean Phase
Pressure conveying
Vacuum conveying
Dense Phase
Valve Image
airlock logo
TYPES
TYPES OF
DIVERTER VALVE
  • DTD
  • BDV
  • SDTD
  • SDTD-C
  • Y-TYPE
  • SCALE VALVE
  • LSV
  • BY PASS
Click to explore products
DTD
BDV
SDTD
SDTD-C
Y-TYPE
Scale Valve
LSV
BYPASS
Valve
DRUM TYPE DIVERTER
INTRODUCTION TO DTD

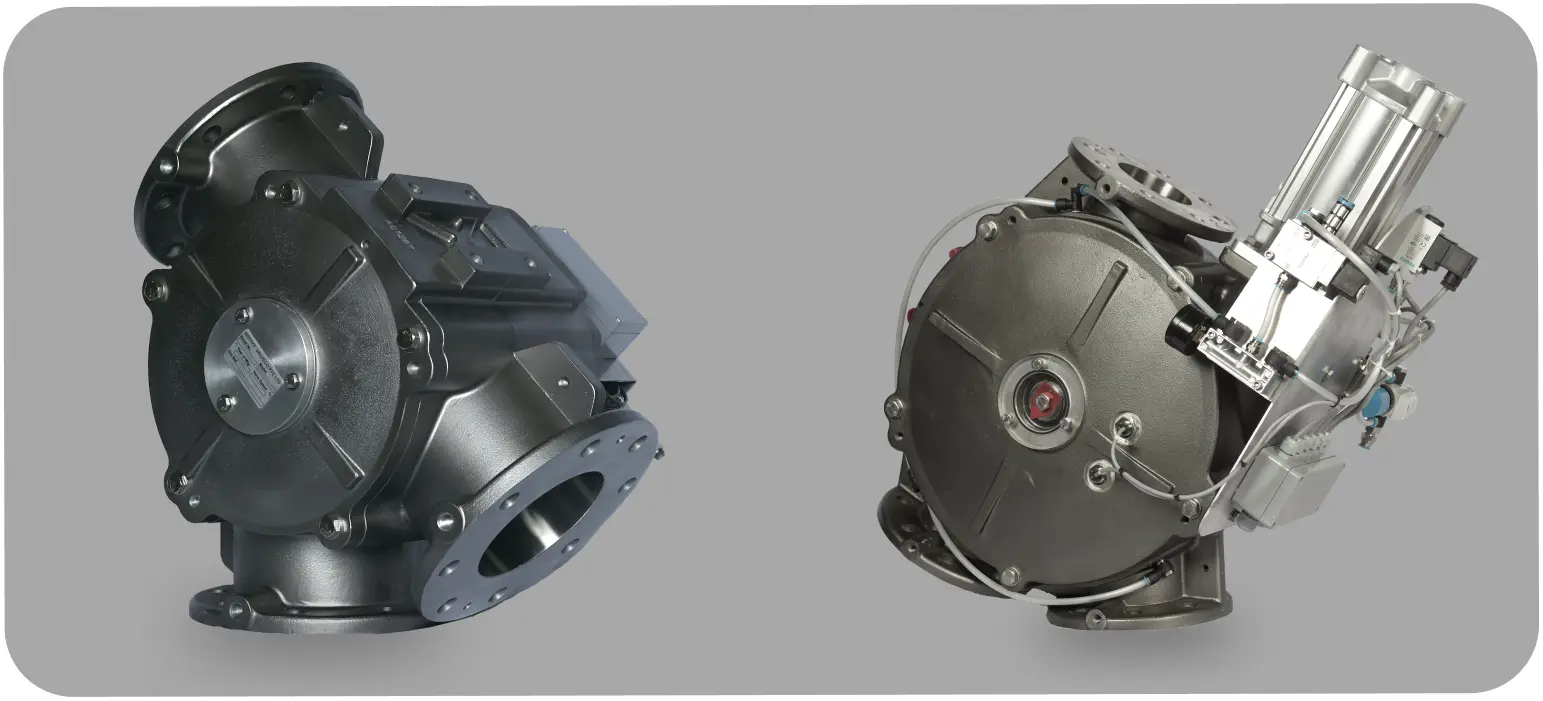

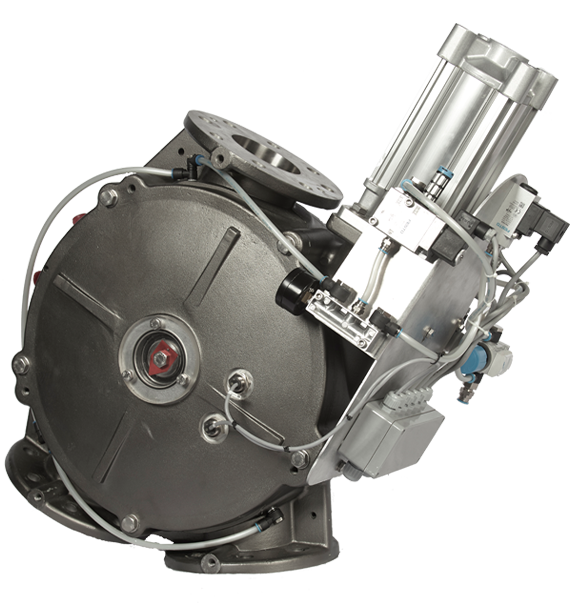

Drum Type Diverters (DTD)are specifically designed to divert or converge dry bulk materials—such as powders, pellets, kibbles, and granules—with minimal product degradation in pneumatic conveying systems.

They are suitable for both pressure and vacuum conveying applications.
Sealing options include silicone and polyurethane, selected based on the application requirements :

  • Static Silicone Seals are suitable for pressure conveying up to 2 bar(g)
  • Dynamic Silicone Seals are ideal for higher-pressure applications, supporting up to 6 bar(g)

DTD units are available in sizes ranging from 50 mm to 200 mm.

Valve Image
FEATURES
PRODUCT
FEATURES & OPTIONS
FEATURES
OPTIONS
Animation
3D DTD
360
product DTD
FAQ
1. Can DTD be used in WET application like CIP process?
it is meant only for dry application without any CIP. Only product contact parts are in SS material. Housing and plug are in Aluminum material.
2. What is the maximum product temperature DTD can handle?
Only up to 80 deg C. Since the housing and plug are in Aluminum, thermal expansion is faster for high temperatures resulting in pipe fitted with them will become loose.
3. What seals are used for pressure less than 2 bar and what seals to be used for pressure more than 2 bar?
Static seals or pressure less than 2 bar and inflatable seals from 2-6 bar.
4. Can DTD be mounted in any orientation?
Yes. It can be installed in any plane horizontal, vertical, or inclined etc.
DTD ( Drum Type Diverter valve )
Frequently Asked Questions
5. What is the best way to orient the flow line of DTD diverter valve?
It is always recommended to keep the straight flow as the product flow line always and divert line only for diversion as and when needed.
6. Is it good to change the direction of DTD during the product fly?
No. the product flow should be stopped for a few secs followed dry run (without product) and then the line has to changed.
7. What special seal is recommended for abrasive products like sugar in this valve?
This diverter valve with polyurethane seals is recommended for mildly abrasive products like crystal sugars etc. . The other option is, we can have thicker tube in product contact area.
8. Where do we use DTD – X diverter?
It is developed mainly for abrasive product like chemical powders, Silica, cement etc..
BALL TYPE DIVERTER
BDV
BDV

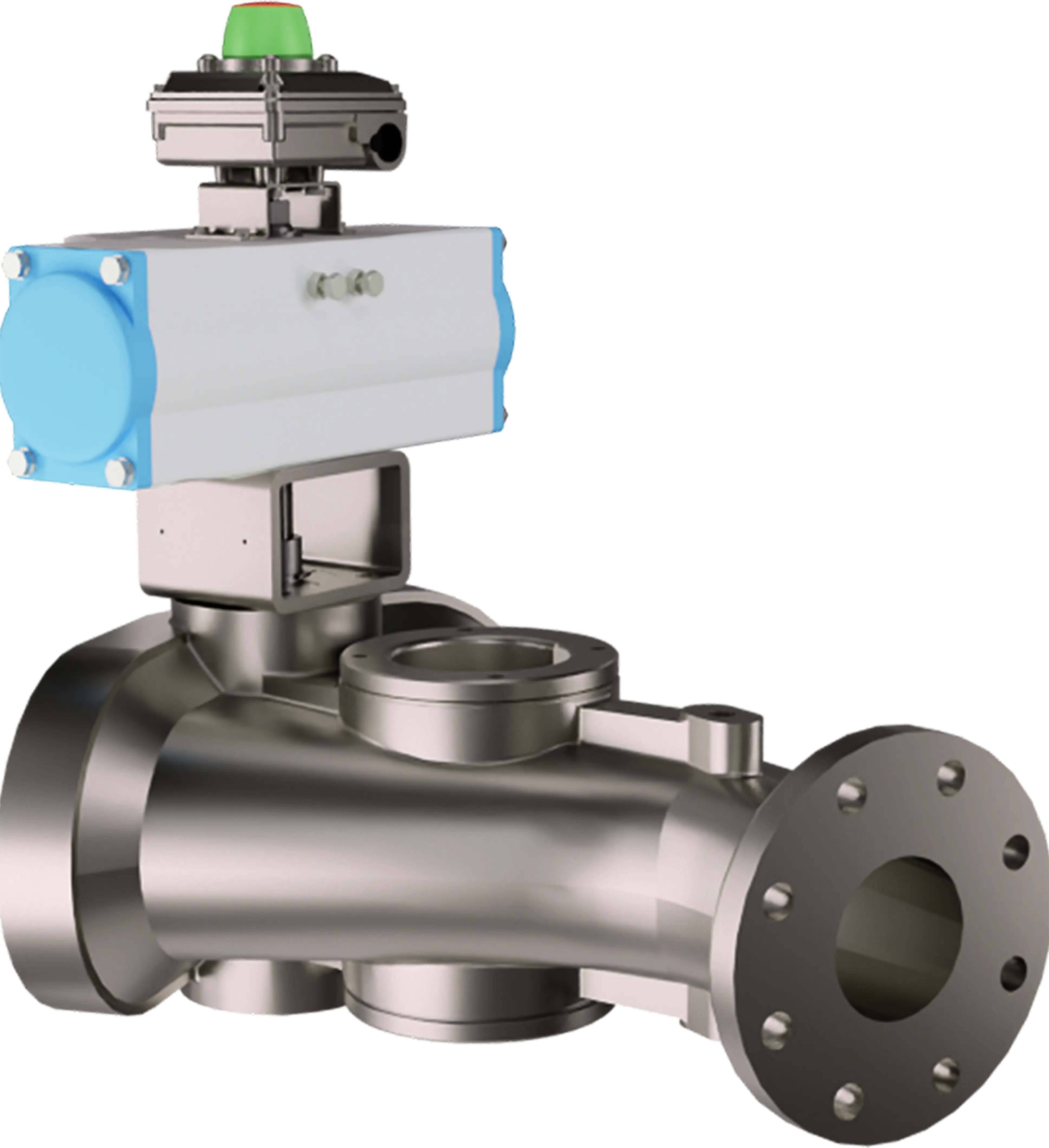

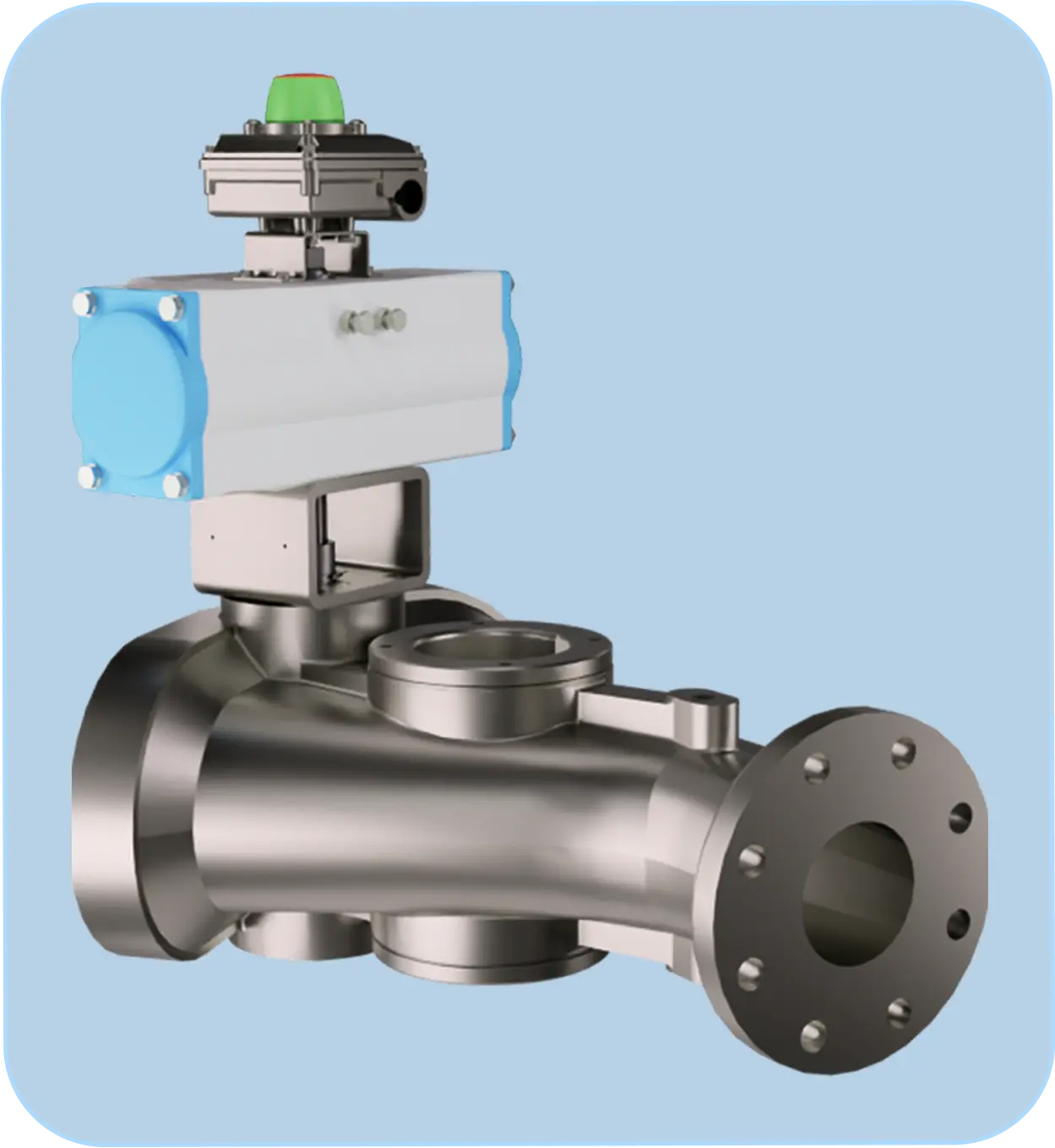

BDV Diverter

Ball Type Diverter (BDV) are specifically designed to divert or converge dry bulk materials—such as powders, pellets, kibbles, and granules in pneumatic conveying systems.

They are suitable for both pressure conveying up to 6 bar g and vacuum conveying up to -0.5 bar g applications.

Sealing options include polyurethane, viton and silicone - selected based on the application requirements :

BDV units are available in sizes ranging from 65 mm to 250 mm.

FEATURES
BDV
FEATURES & OPTIONS
FEATURES
OPTIONS
FEATURES
3D BDV
360
product BDV
FAQ
1. When BTD is Recommended ?
it is mainly for heavy and abrasive products.
2. What is the maximum pressure it can handle?
it used for a pressure up to 6 bar.
BDV ( Ball Type Diverter valve )
Frequently Asked Questions
3. What is the preferred mounting position for BTD?
Horizontal.
4. Can the direction of product flow be changed with this diverter in product fly?
Yes. It can be done. That is the advantage of this diverter.
SINGLE DRUMTYPE DIVERTER
SDTD
SDTD
Single Drum Type Diverter

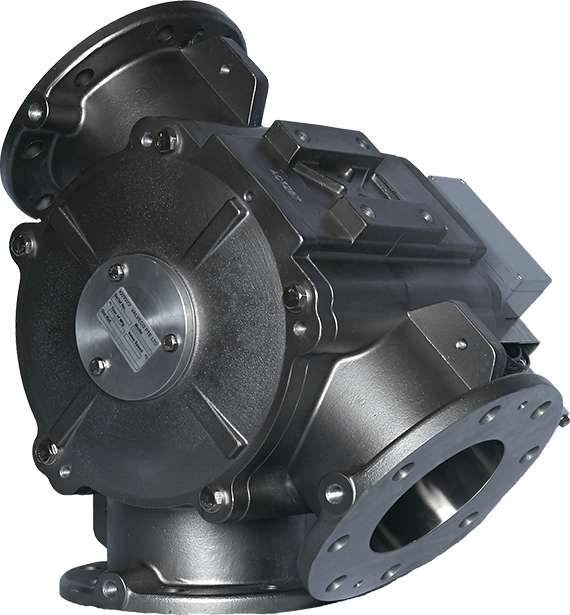

Single Drum Type Diverters (SDTD) are specifically designed to divert dry bulk materials such as powders, pellets, kibbles, and granules – in pneumatic conveying systems.

They are suitable for both pressure and vacuum conveying applications.

Sealing options include static silicone and dynamic silicone, selected based on the application requirements :

  • Static Silicone Seals are suitable for pressure conveying up to 1.5 bar (g)
  • Dynamic Silicone Seals are ideal for higher-pressure applications, supporting up to 6 bar (g)

SDTD units are available in sizes ranging from 150 mm to 300 mm.

FEATURES
SDTD
FEATURES & OPTIONS
FEATURES
OPTIONS
ANIMATIONS
3D SDTD
360
product BDV
FAQ
1. When to use this diverter ?
when the size is more than 200, DTD ranges are not available. Hence, we go for this.
2. What is the limitation of this diverter?
it is used only for diverting and cannot be used in converging application.
SDTD ( Single Tunnel Drum type Diverter )
Frequently Asked Questions
3. What is the disadvantage of this SDTD ?
since the switching angle is more, it takes time for diversion. Very hard materials ( very brittle materials ) when handled by this diverter will have more product degradation as the diversion angle is sharp and more. Sometimes it is used for smaller sizes because of low cost of manufacturing.
SINGLE DRUMTYPE DIVERTER-C
SDTD-C
SDTD-C
Single Drum Type Diverter - C

Single Drum Type Diverters-C (SDTD-C) are specifically designed to divert and converge dry bulk materials—such as powders, pellets, kibbles, and granules – in pneumatic conveying systems.

They are suitable for both pressure and vacuum conveying applications.

Sealing options include static silicone and dynamic silicone, selected based on the application requirements :

  • Static Silicone Seals are suitable for pressure conveying up to 1.5 bar (g)
  • Dynamic Silicone Seals are ideal for higher-pressure applications, supporting up to 6 bar (g)

SDTD units are available in sizes ranging from 150 mm to 300 mm.

FEATURES
SDTD-C
FEATURES & OPTIONS
FEATURES
OPTIONS
ANIMATIONS
3D SDTD-C
360
product SDTD-c
FAQ
1. When to use this diverter ?
when the size is more than 200, DTD ranges are not available. Hence, we go for this.
2. What is the limitation of this diverter?
it is used only for diverting and cannot be used in converging application.
SDTD-C ( Single Tunnel Drum type Diverter - C )
Frequently Asked Questions
3. What is the disadvantage of this SDTD-C ?
since the switching angle is more, it takes time for diversion. Very hard materials ( very brittle materials ) when handled by this diverter will have more product degradation as the diversion angle is sharp and more. Sometimes it is used for smaller sizes because of low cost of manufacturing.
Y TYPEDIVERTER

( Y- Valve )

Y-TYPE
Y TYPE
Y
TYPE

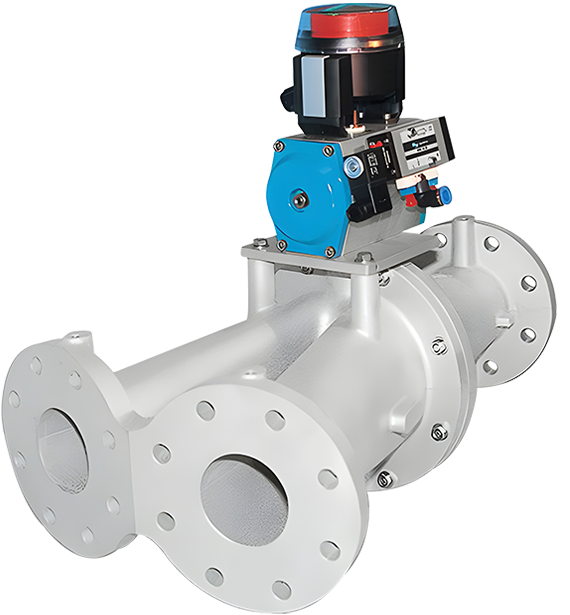

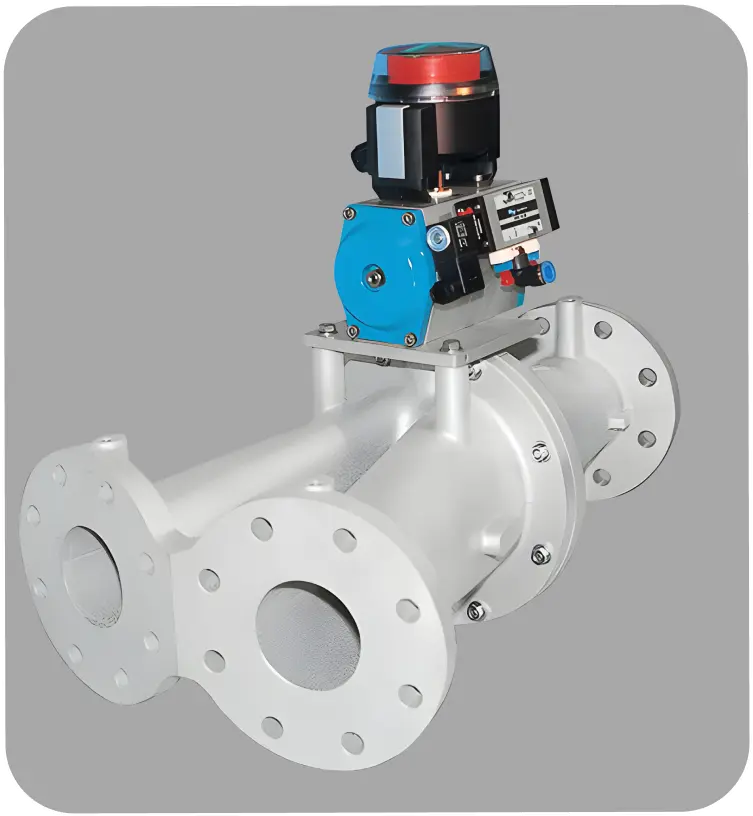

Y Type Diverters (YTD) are designed to Divert or Converge Dry Materials such as Powders, Pellets and Granules in Pneumatic Conveying Applications.

YTD diverters are used in Food, Chemical, Plastics, Pet Food and Other Bulk Solids Handling Industries.

It is suitable for Pressure Conveying Applications up to 0.5 bar.

YTD units are available in sizes ranging from 50 mm to 200 mm.

FEATURES
Y TYPE
FEATURES & OPTIONS
FEATURES
OPTIONS
FAQ
1. When to use Y Type Diverter valve?
Used in less budget application, for handling flour etc.
2. What is the Diverting leg angle?
22.5°.
3. What is the Maximum working pressure for YTDV?
2 bar.
Y - TYPE
Frequently Asked Questions
4. Can YTDV be used in vacuum conveying application?
Yes, it can be used with special flap with higher shore hardness.
5. Can YTDV be used in CIP operations?
Yes. It can used. But there is no hygiene certification for it. Validation for hygiene conditions are in client’s scope. It can not be guaranteed by vendor.
SCALE VALVE
SCALE VALVE
INTRODUCTION TO SCALE VALVE

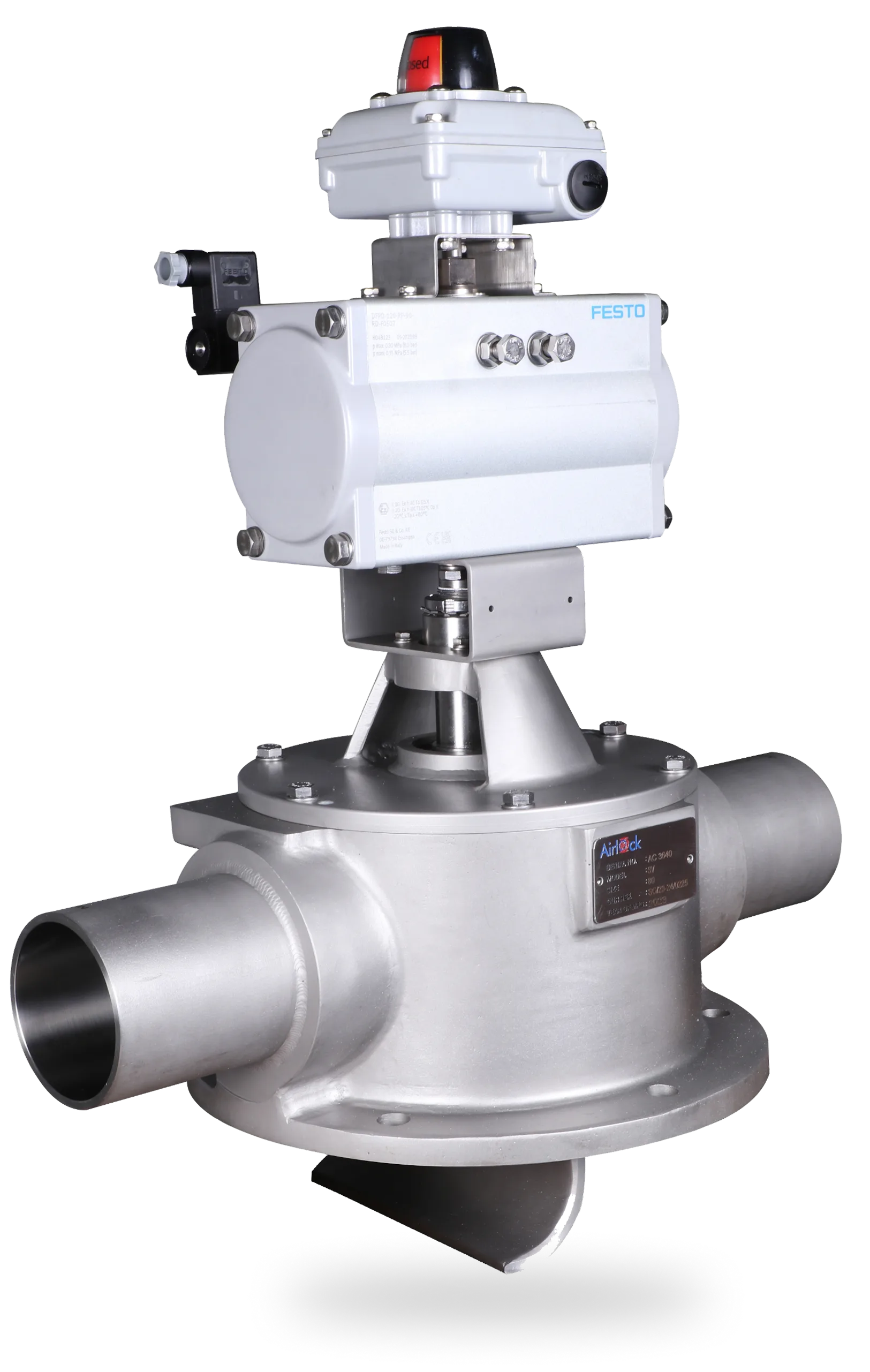

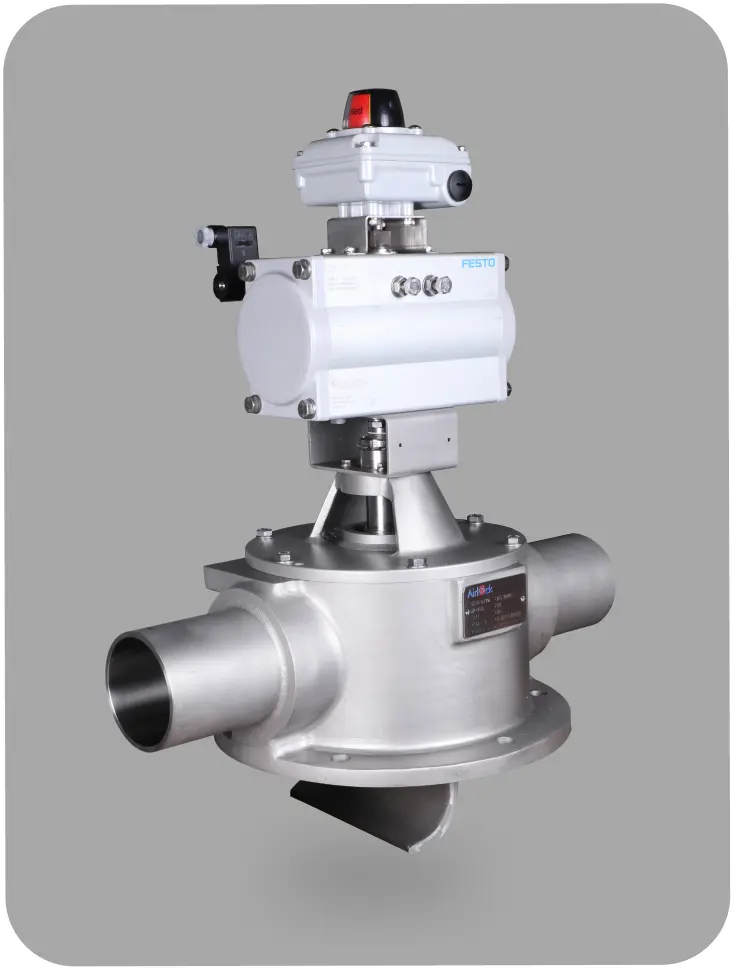

Scale Valve (SV-A also known as a Bottom Diverter or Fill Vent Diverter) is a pneumatically actuated diversion valve designed to divert bulk solids during pneumatic transport.

It is designed for applications like dosing, weighing, batching and filling.

Principle Operations

  • Straight-through mode: Inlet and outlet aligned; material flows straight thru.
  • Divert mode: the leaf rotates to redirect material into a weigh hopper or scale vessel; conveying air is vented separately.

By using a Scale Valve, customers can replace individual bin vents on each hopper with a single, common dust collector unit, leading to substantial cost savings.

SV-A units are available with Pipe and Flange End Connections in sizes ranging from 50 mm to 150 mm.

Valve Image
FEATURES
SCALE VALVE
FEATURES & OPTIONS

FEATURES



OPTIONS

ANIMATIONS
FAQ
1. What are the applications of a Scale Valve?
Scale valves are widely used in Weighing Applications
2. Which industries prefer using Scale Valve?
They are commonly used in the bakery industry and other industries handling flour, sugar or similar bulk powders.
3. What end connections are available?
Scale Valves are offered with pipe connections and flanged connections.
SCALE VALVE
Frequently Asked Questions
4. What is the benefit of using a Scale Valve?
By using a Scale Valve, customers can eliminate the need for a separate bin vent on each hopper / weigh hopper and instead use a common bin vent for air filtration. This reduces cost and simplifies maintenance.
5. Does the Scale Valve have a seal?
No. The Scale Valve does not have a seal. Instead, it is designed with a tight clearance like rotary valve between the leaf and housing, which minimizes product leakage effectively without requiring seals.
LINE SELECTOR
VALVE
LSV
INTRODUCTION TO LSV

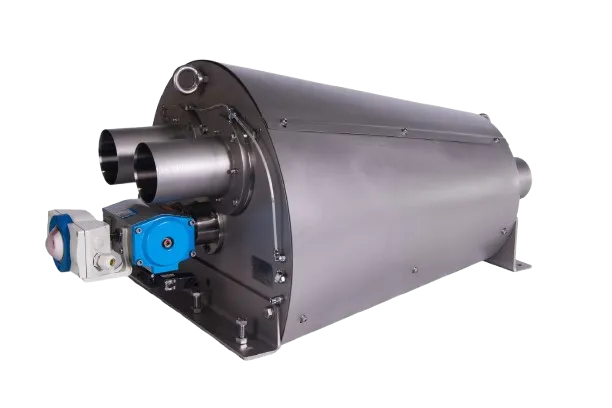

Our LSV is designed to use in pneumatic conveying applications to divert product flow from one location to 2 or 3 destinations and also used to converge the product flow from 2 or 3 lines into one line.

LSV is used to pneumatically convey the powders and pellets with minimum product degradation in dilute and dense phase pressure and vacuum systems.

LSV is available in 2 and 3 port versions with 80 to 150 mm pipe configuration.

Dynamic seal can be used for pneumatic conveying applications from -0.8 bar g up to 3 bar g.

Goose neck in LSV is smooth and prevents product stagnation.

All ports of the LSV are sealed, ensuring that no air or product leakage occurs from unused ports.

LSV is suitable for COP and CIP applications.

Valve Image
FEATURES
LINE SELECTOR VALVE
FEATURES & OPTIONS

FEATURES



OPTIONS

FAQ
1. Which industries commonly use LSV?
Food, Dairy and Pet Food.
2. Is the LSV suitable for CIP?
The LSV is designed for both COP (Clean-Out-Place) and CIP (Clean-In-Place) applications. It is recommended to perform COP when complete cleaning of valve is required.
LINE SELECTOR VALVE
Frequently Asked Questions
3. How many outlets are available in LSV?
2 & 3 ports.
4. What is the recommended installation orientation for LSV?
LSV is generally recommended to be installed in a horizontal orientation. Vertical installation may be possible in some cases, subject to factory approval on a case-to-case basis.
BY PASSVALVE
BY PASS
INTRODUCTION TO BY PASS VALVE

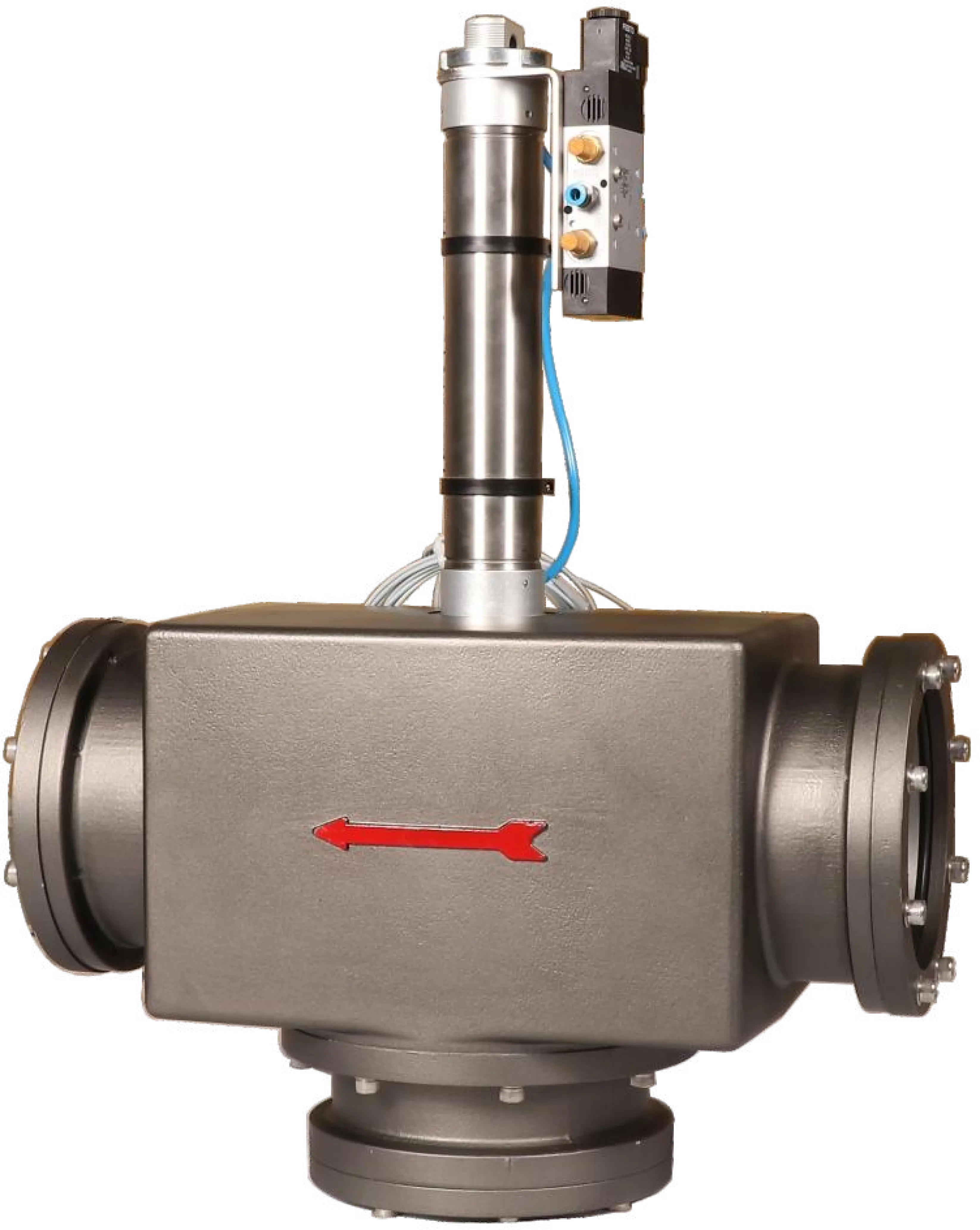

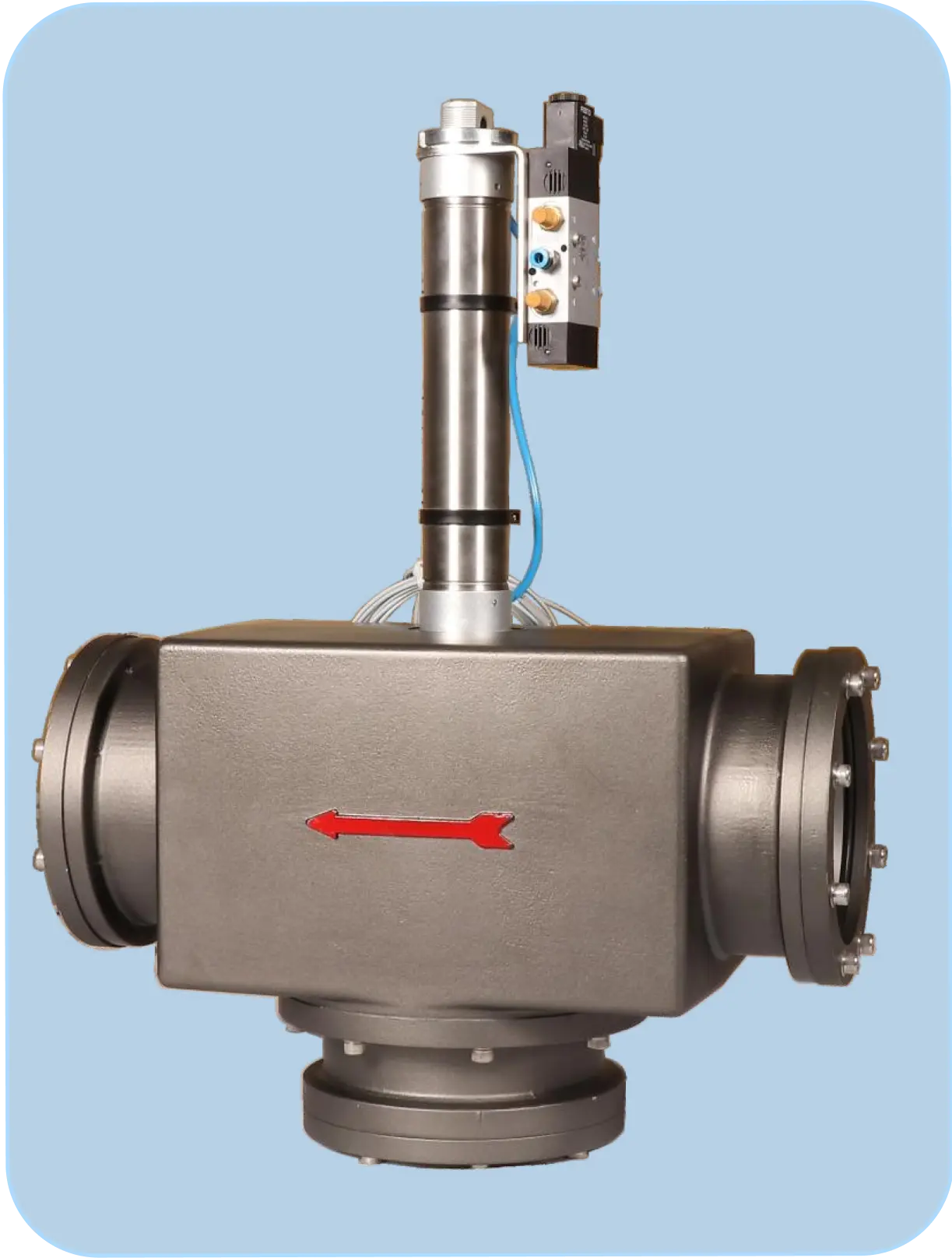

By-Pass Valve (BPV)is also called as “Air Only Diverter” specifically designed to divert the air in pneumatic conveying systems..

This is typically used in Lean Phase Pneumatic Conveying Systems for both pressure and vacuum conveying applications.

BPV is used in Vacuum Systems in order to provide in-line Vacuum Relief and to ensure safe operation of Blowers and Vacuum Vessels / Hoppers.

In a Pressure System with the BPV, the Air is Vented Out to the Atmosphere when not needed while changing Diverter Valve Direction instead of Switching off the Blower.

BPV is used in Water Treatment Systems as an Un-loading Valve in the Blower Line.

BPV units are available in sizes ranging from 50 mm to 200 mm.

Construction : Aluminium

Sizes : 50, 75,100 & 150 mm

Plunger : Standardized on SS material with FDA rubber disc

Valve Image
FEATURES
BY PASS VALVE
FEATURES & OPTIONS

FEATURES

OPTIONS

ANIMATIONS
FAQ
1. When to use this diverter ?
when the size is more than 200, BY PASS VALVE ranges are not available. Hence, we go for this.
2. What is the limitation of this diverter?
it is used only for diverting and cannot be used in converging application.
BY PASS VALVE
Frequently Asked Questions
3. What is the disadvantage of this BY PASS VALVE ?
since the switching angle is more, it takes time for diversion. Very hard materials ( very brittle materials ) when handled by this diverter will have more product degradation as the diversion angle is sharp and more. Sometimes it is used for smaller sizes because of low cost of manufacturing.
